Integrated Cold Formed Five Wave Open W Cross Member 80×2.5×2540

1. Product Overview

This five-bend open W cross member, also known as W-type cross member, is specially used for semi-trailers with specification 80×2.5×2540. It is integrally cold-bent from high-strength steel plate into five wave bends with prefabricated mounting holes. As the transverse load-bearing part of the trailer body, it supports the floor and transfers the weight of the carriage floor to the main beam, serving as a core section steel accessory for the trailer carriage.

2. Application Scenarios

It is mainly applied to lattice semi-trailers, flatbed semi-trailers, container flatbed trailers and light-duty dump trailers. It is suitable for new vehicle assembly and replacement maintenance of old trailers for freight trailers carrying grain, sand, gravel, general merchandise, equipment and other goods. It is supplied to overseas trailer factories and maintenance merchants and exported to markets such as Africa and Southeast Asia.

3. Core Advantages

1. The five-bend design ensures even force distribution, so it is not easy to deform or break under heavy loads and has strong resistance to bumping.
2. Made of 2.5mm thick high-strength plate, it features light self-weight and sufficient bearing capacity, helping trailers achieve lightweight design without wasting load capacity.
3. Prefabricated mounting holes eliminate on-site drilling, simplifying installation for direct assembly with main beams and floor panels.
4. The open W structure fits well with the floor, dispersing pressure and reducing cracking of the carriage floor.

4. Structure and Configuration Description

Specification: width 80mm, plate thickness 2.5mm, total length 2540mm.

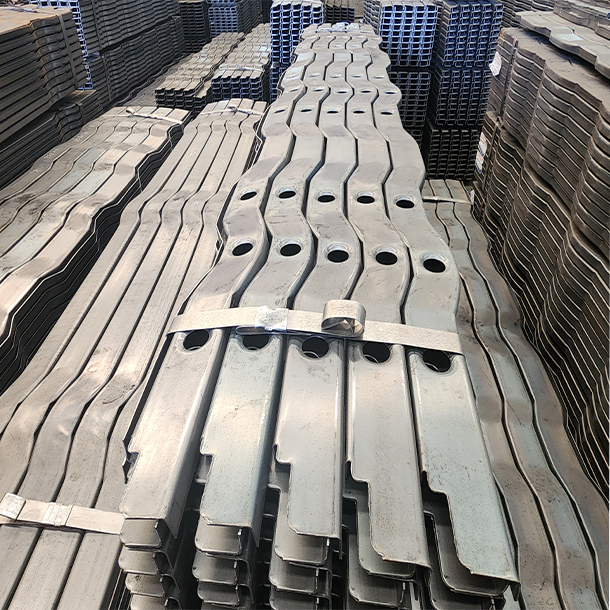

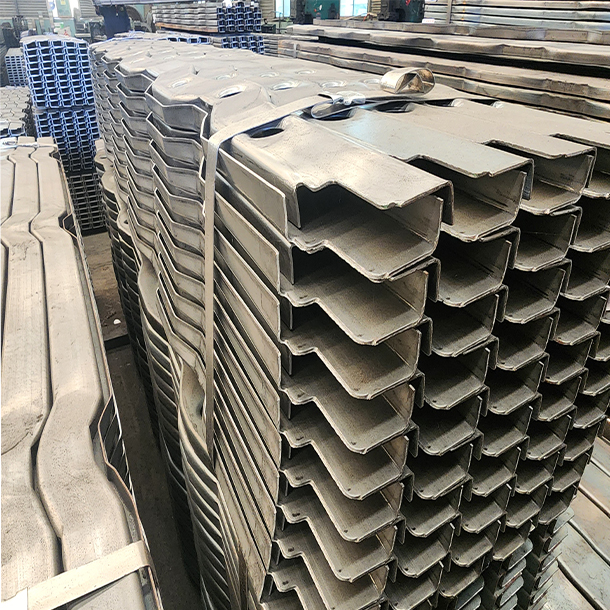

The whole piece is integrally cold-formed with five bends to form a wavy W shape. Round prefabricated through holes are reserved on the plate for bolt fixing. The open cross-section has folded edges on upper and lower sides to improve its rigidity. It is made of high-strength steel, integrally formed without splicing.

5. Customization Options

• Size adjustment: thickness, width and total length can be adjusted as required.
• Bend shape: bend degree, hole position, hole size and hole quantity can be adjusted.
• Special hole layout and end cutting styles can be processed according to drawings.

6. Packaging & Delivery Instructions

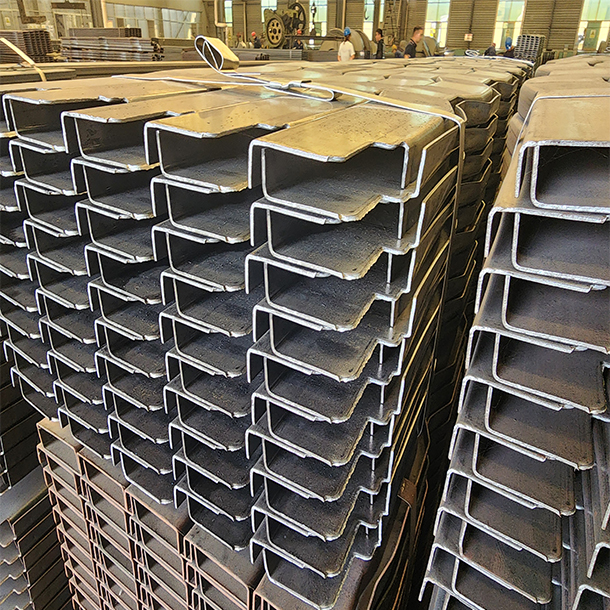

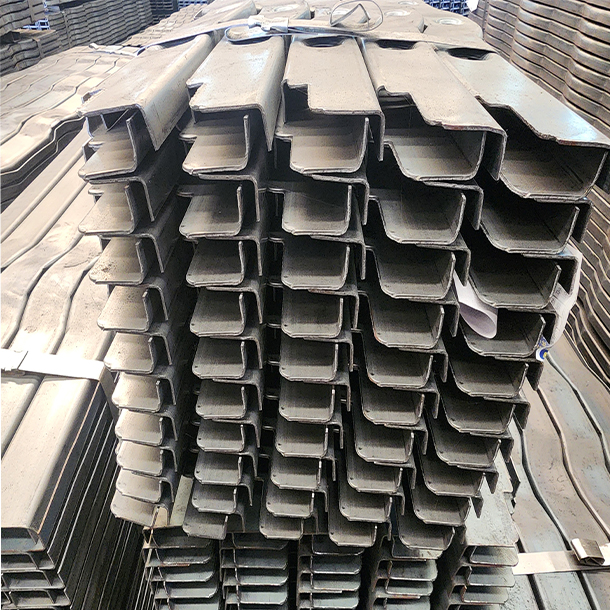

• Standard packing: multiple pieces bundled together with steel straps to prevent sliding and collision during handling.
• Stacked in warehouse, loaded and unloaded by overhead crane.
• For export orders, bulk carrier sea transportation is adopted to fit port loading operations.
• Quantity will be checked before shipment.

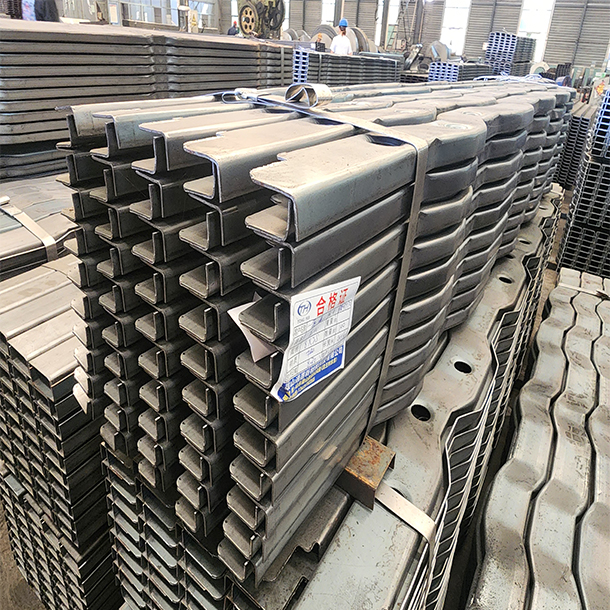

• Bundles are labeled with specifications and reinforced for protection to reduce collision damage during sea transit.

7. Inquiry Guidance

If you are an overseas purchaser and need this five-bend open W cross member for export, please contact us directly. Kindly inform us of your required quantity, surface treatment and other requirements. We will offer a competitive price. Samples can be provided for quality inspection. Custom processing according to drawings is available. Welcome your inquiry.
